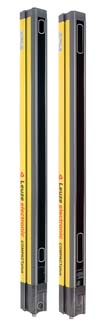

CPT501/2/AP - Multiple light beam safety device transmitter

Àðòèêóë: 68845050
Íàèìåíîâàíèå: CPT501/2/AP - Multiple light beam safety device transmitter
Ïðîèçâîäèòåëü: Leuze electronic


Part description CPT501/2/AP - Multiple light beam safety device transmitter
Part no. 68845050



  • Technical features

    • Basic data
      • SeriesCOMPACTplus
      • Device typeTransmitter
    • Characteristic parameters
      • Model4, IEC/EN 61496
      • SIL3, IEC 61508
      • SILCL3, IEC/EN 62061
      • Service life20 years, EN ISO 13849-1
    • Protective field data
      • Operating range6 ... 70 m
    • Optics
      • Number of beams2 Piece(s)
      • Beam spacing500 mm
      • SynchronizationOptical between transmitter and receiver
      • Light sourceLED, infrared
      • LED light wavelength880 nm
      • Transmitted-signal shapeModulated
      • LED safety class1
    • Electrical equipment
      • Protective circuitInductive protection, Short circuit protected, Overvoltage protection, Transient protection, Overtemperature protection, Polarity reversal protection
      • Performance data
        • FuseExternal with max. 4 A semi time-lag
    • Connection
      • Number of connections1 Piece(s)
      • Connection 1
        • Type of connectionConnector
        • FunctionVoltage supply
        • Thread sizeM12
        • MaterialMetal
        • No. of pins5 Piece(s)
      • Cable properties
        • Permissible conductor cross section, typ.1 mm²
        • Length of connection cable, max.100 m
        • Permissible cable resistance to load, max.10 Ω
    • Mechanical data
      • Dimension52 mm x 734 mm x 55 mm
      • Housing materialMetal, aluminum
      • Lens cover materialplastic
      • Material of end capsplastic
      • Net weight1.900 g
      • Housing colorYellow, RAL 1021
      • Type of fasteningSlot mounting
    • Operation and display
      • Type of display7-segment display
      • Type of configurationSwitch
      • Operational controlsSlide switch
    • Environmental data
      • Ambient temperature, operation0 ... 50 °C
      • Ambient temperature, storage-25 ... 70 °C
      • Relative humidity (non-condensing)15 ... 95 %
    • Certifications
      • Protection classIP 65
      • Safety classIII
      • Certificationsc UL US, c TÃœV NRTL US, CE

  • Downloads

    • Part data of: 2013-11-24 21:03:00
