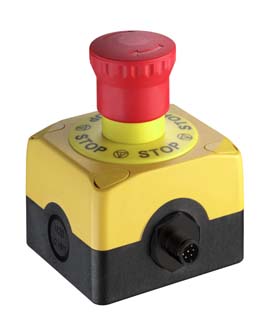

ESB200-4TR-M12p - E-Stop button

Àðòèêóë: 63000004
Íàèìåíîâàíèå: ESB200-4TR-M12p - E-Stop button
Ïðîèçâîäèòåëü: Leuze electronic


Part description ESB200-4TR-M12p - E-Stop button
Part no. 63000004



  • Technical features

    • Basic data
      • SeriesESB200
    • Characteristic parameters
      • SILUp to 3, IEC 61508
      • Performance level (PL)Up to and including e, EN ISO 13849-1
      • Service life20 years, EN ISO 13849-1
      • Mechanical life time300.000 actuation cycles, IEC 60947-5-1 switching cycles
      • CategoryUp to incl. 4 (depending on wiring), EN ISO 13849
      • B10d600.000 number of cycles
      • Usage category at DC 13Ue 24 V, Ie 2 A, EN 60947-5-1
      • Usage category at AC 15Ue 24 V, Ie 2 A, EN 60947-5-1
      • Life expectancy contact20.000.000 switching cycles
    • Electrical equipment
      • Protective circuitShort circuit protected
      • Contact equipment2NC + 1NO
      • Contact openingForce-fit
      • Short circuit protected500V 2A, type gG/gL, IEC 60269-1
      • Performance data
        • Rated insulation voltage30 V AC, 36 V DC
        • Conventional thermal current, max.2 A
    • Connection
      • Number of connections1 Piece(s)
      • Connection 1
        • Type of connectionConnector
        • FunctionContact connection
    • Mechanical data
      • Dimension80 mm x 102.3 mm x 72 mm
      • Housing materialplastic, Glass fiber reinforced (PPS), self-extinguishing
      • Electrical contact materialSilver alloy
      • Net weight248 g
      • Housing colorBlack, Yellow, RAL 1023
      • Type of fasteningThrough-hole mounting, Wall mounting
      • Type of cable entryM12
      • Installation pointArbitrary
      • Switch typeE-Stop command device, EN 1088
      • Switching principleCreep contact
      • Actuation frequency, max.3.600 per hour, IEC 60947-5-1
      • Type of actuationRed button
      • Scanner actuation force25 N
      • Scanner materialplastic
    • Environmental data
      • Ambient temperature, operation-25 ... 80 °C
    • Certifications
      • Protection classIP 67, IP 69K
      • Certificationsc UL US
      • Degree of contamination3, EN 60947-1
    • Functions
      • FunctionsE-STOP control device in accordance with EN 60947-5-5

  • Downloads

    • Part data of: 2013-11-24 21:03:00
